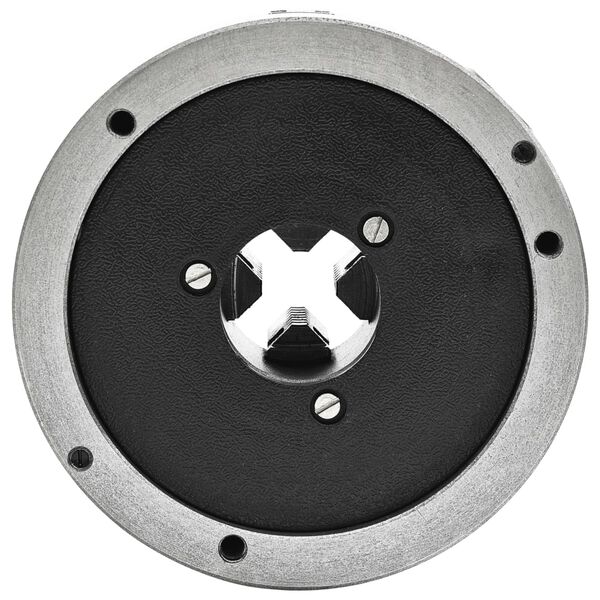

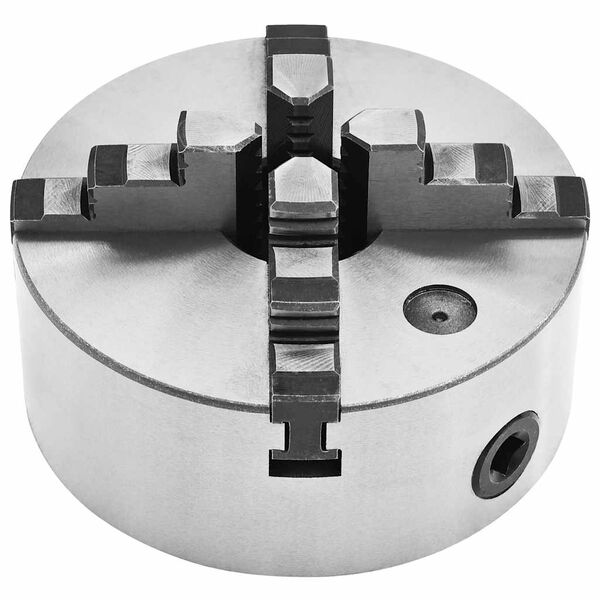

vidaXL 4 Jaw Self-Centering Lathe Chuck 160 mm Steel

favorite favorite_border

Description

This self-centring 4 jaw lathe chuck can perform a wide range of tasks, expanding the possibilities of making your original designs. It also proves high clamping accuracy on a wide range of surfaces, such as a fixed solid or hollow circle material, a triangular material or a hexagonal material.

It is made of high-quality steel with high hardness and wear-resistance, making it strong and durable. This chuck is with 4 jaw design, self-centring, compact size and easy to use.

Specifications

  • Colour: Silver and black
  • Material: HT300 steel
  • Outside diameter: 160 mm
  • Number of jaw: 4
  • Passage: 45 mm
  • Cylindrical inner passage: 130 mm
  • Clamping range (interal jaw): 3 - 55 mm
  • Clamping range (external jaw): 55 - 145 mm
  • Total height: 65 mm
  • Maximum speed: 2500 R/min
  • 3 x M8 holes
  • Run out: 0.08
  • Net weight: 8.5 kg

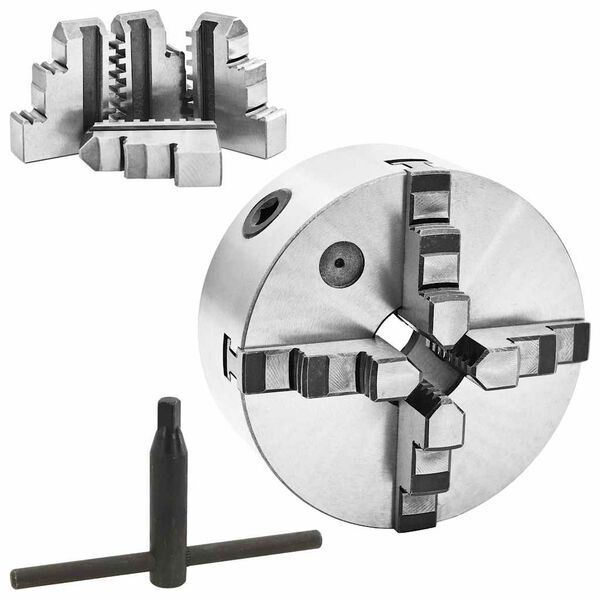

  • Delivery contains:
  • 1 x Lathe chuck
  • 4 x Jaw
  • 1 x Chuck key
  • EAN:8720286025246
  • SKU:146711
  • Brand:vidaXL
