vidaXL 4 Jaw Wood Chuck with M33 Connection Steel Silver 96 mm
vidaXL
vidaXL 4 Jaw Wood Chuck with M33 Connection Steel Silver 96 mm
Skip Images

vidaXL 4 Jaw Wood Chuck with M33 Connection Steel Silver 96 mm

Description

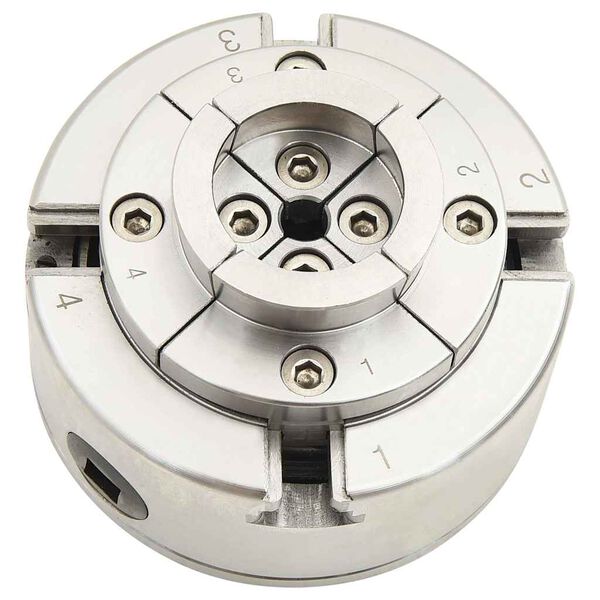

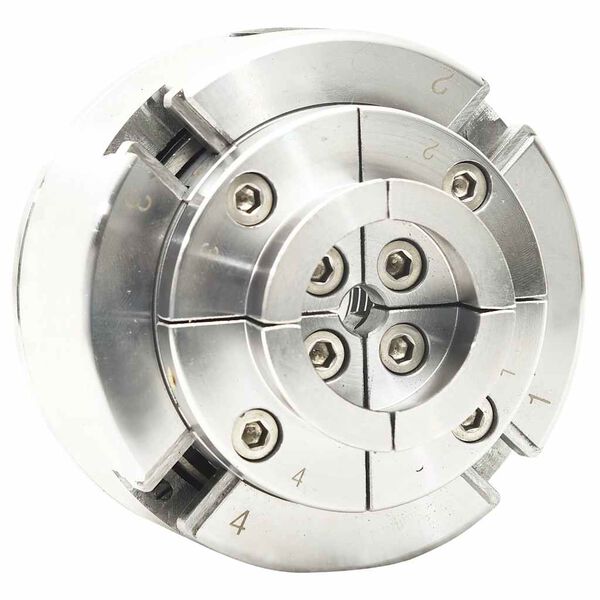

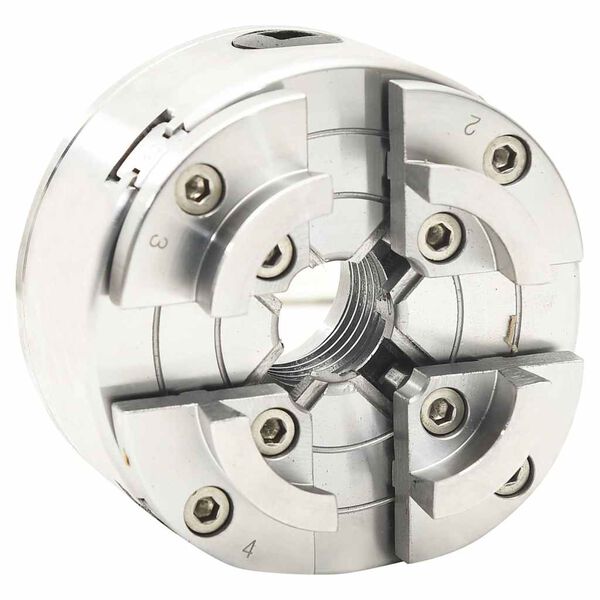

This wood chuck can perform a wide range of tasks, expanding the possibilities of making your original designs. It also provides high clamping accuracy on a wide range of surfaces, such as a fixed solid or hollow circle material, a triangular material, or a hexagonal material.

This self-centering chuck is made of steel, making it strong and durable. Featuring 4 jaw design, the chuck is easy to use and fits a wide range of wood chucking lathe.

Specifications

  • Colour: Silver and red
  • Material: Steel
  • Overall diameter: 96 mm
  • Number of jaws: 4
  • Thread: M 33 with pitch 3.5
  • Depth without jaws: 50 mm
  • Depth with jaws: 71 mm
  • External clamping width: 45 mm - 81 mm
  • Inner span: 32 mm - 67 mm
  • Thread depth: 55 mm
  • Maximum speed: 3000 R/min
  • Net weight: 2.4 kg
  • Self-centering
  • Assembly required: Yes

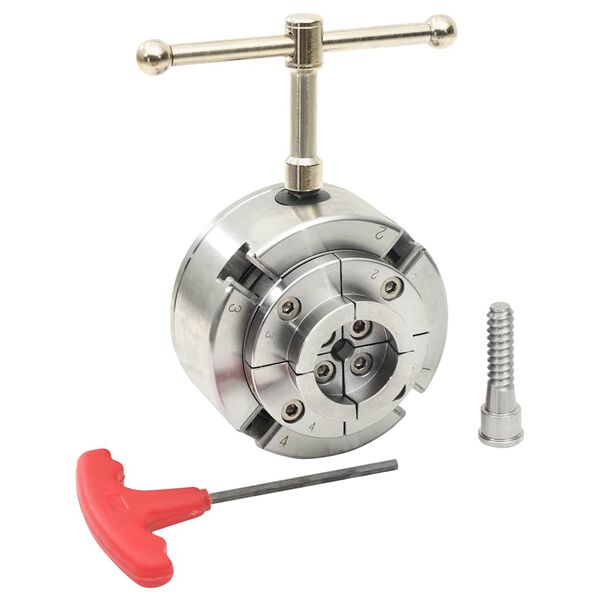

  • Delivery contains:
  • 1 x Chuck
  • 1 x Spanner
  • 1 x "T" spanner
  • 1 x Wood screw
  • EAN:8720286090589
  • SKU:147831
  • Brand:vidaXL
